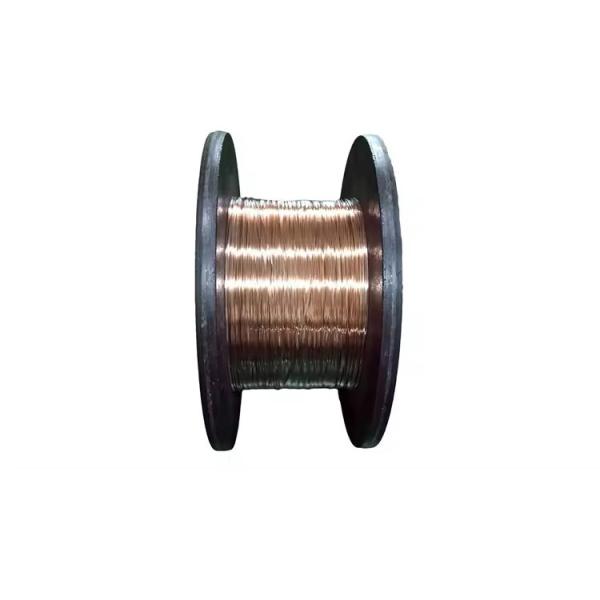

Alloy30 CuNi2 NC5 Wire for Electric Blankets and Pillows

Name: Alloy30 CuNi2 NC5 Wire for Electric Blankets and Pillows
Brand: Ohmalloy
Price: 8 USD

China Alloy30 CuNi2 NC5 Wire for Electric Blankets and Pillows wholesale

Brand Name : Ohmalloy

Model Number : Ohmalloy005 CuNi2 (Alloy30)

Certification : ISO SGS CE

Place of Origin : China

MOQ : 25kgs

Price : $8-$14/kg

Payment Terms : L/C, T/T, , MoneyGram

Supply Ability : 80000kg/week

Delivery Time : 10 workdays

Packaging Details : spool+plywood case

Density (g/cm3) : 8.9

Electrical resistivity at 20℃ (Ωmm2/m) : 0.05

Temperature factor of resistivity（20℃~600℃）X10-5/℃ : <120

Conductivity coefficient at 20℃ (WmK) : 130

EMF vs Cu(μV/℃ )(0~100℃ ) : -12

Melting point (℃) : 109

Contact Now

Alloy30 CuNi2 (NC5) Wire for Electric Blankets and Pillows

Common Name: (CuNi2,NC5)

OhmAlloy 005 is a copper-nickel alloy (Cu2Ni98 alloy) with low resistivity for use at temperatures up to 200°C.

Cuprothal 5 is typically used for low-temperature applications such as heating cables in electric blankets and pillows.

Normal composition%

Nickel	2	Manganese	-
Copper	Bal.

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
90	220	25

Typical Physical properties

Density (g/cm3)	8.9
Electrical resistivity at 20℃ (Ωmm2/m)	0.05
Temperature factor of resistivity(20℃~600℃)X10-5/℃	<120
Conductivity coefficient at 20℃ (WmK)	130
EMF vs Cu(μV/℃ )(0~100℃ )	-12

Coefficient of thermal expansion
Temperature	Thermal Expansion x10-6/K
20 ℃- 400℃	17.5

Specific heat capacity
Temperature	20℃
J/gK	0.380

Melting point (℃)	109
Max continuous operating temperature in air (℃)	200
Magnetic properties	non-magnetic

Alloys

Working In atmosphere at 20℃

Working at max temperature 200℃

Air and oxygen contain

gases

gases with Nitrogen

gases with sulfur

oxidability

gases with sulfur

reductibility

carburization

OhmAlloy005

good

bad

good

Alloys Name	Type	Dimension
OhmAlloy005W	Wire	D=0.06mm~8mm
OhmAlloy005R	Ribbon	W=0.4~40	T=0.05~2.9mm
OhmAlloy005S	Strip	W=8~200mm	T=0.1~3.0
OhmAlloy005F	Foil	W=6~120mm	T=0.005~0.1
OhmAlloy005B	Bar	Dia=8~100mm	L=50~1000

Alloy30 CuNi2 NC5 Wire for Electric Blankets and Pillows
